OPS

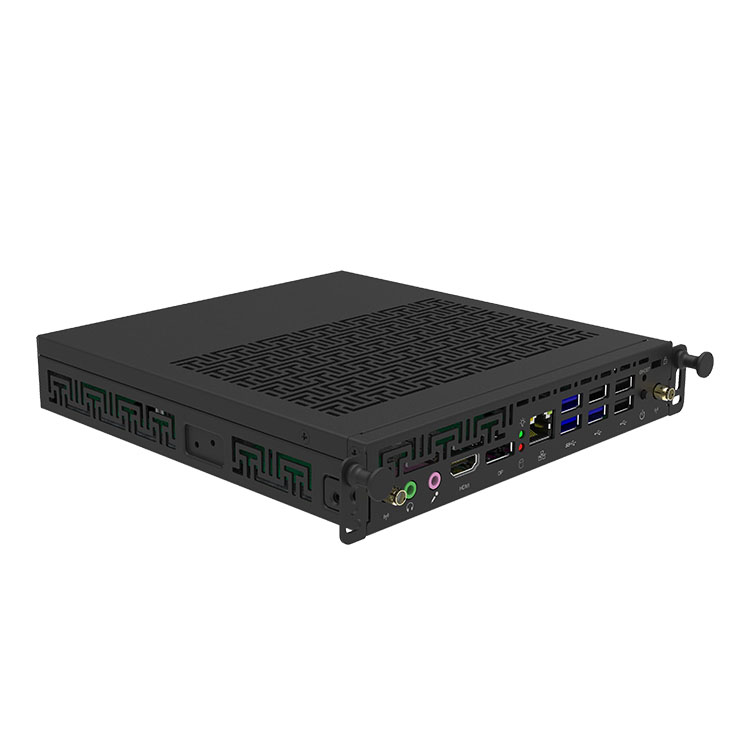

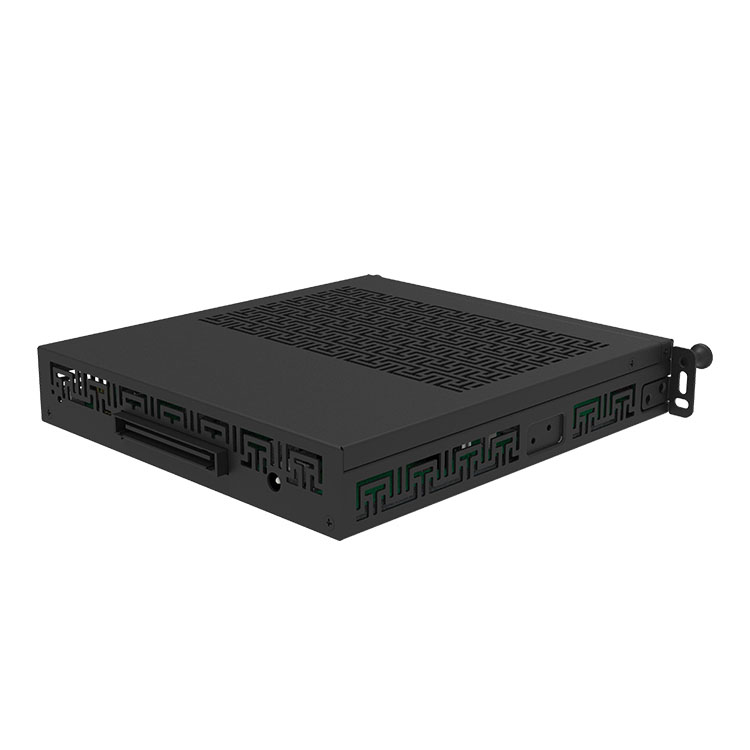

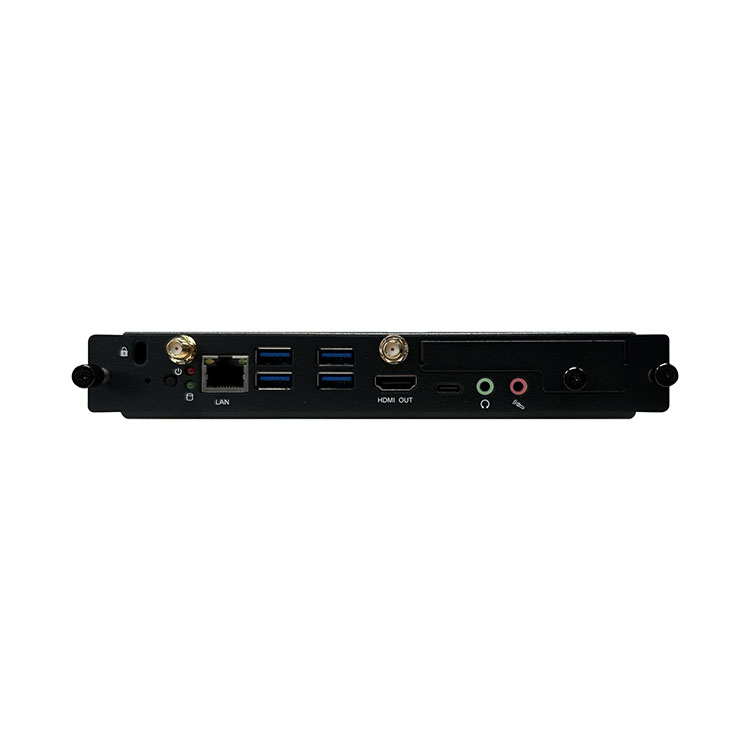

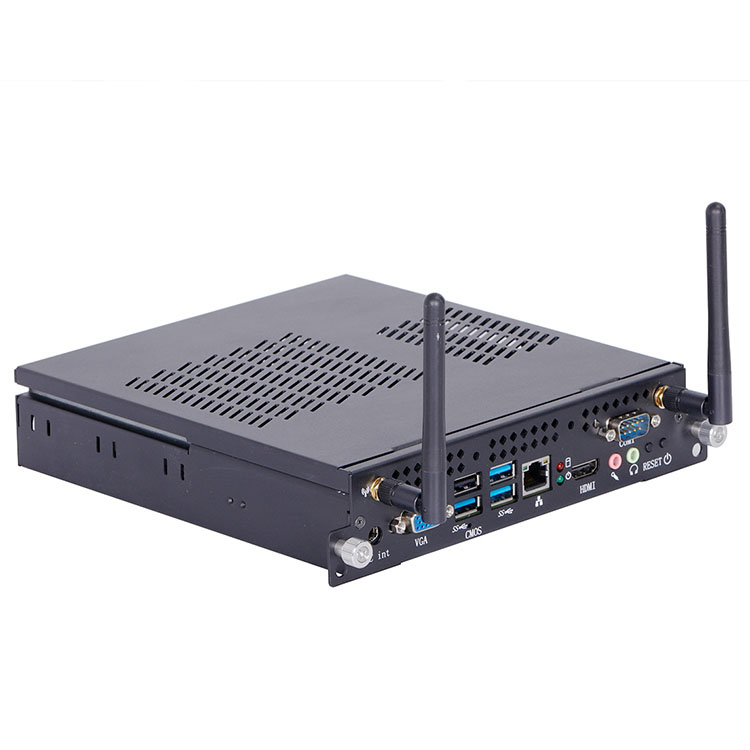

OPS i7 CPU 16+256GB 10GEN
Main Features:
- Front DP+HDMI interface,JAE Support 4K60.
- Double antenna addition WIFI Signal output
- 6*USB Port,Meet customer multiple application requirements
- Front hard one - key restore, convenient system restore.
| Processor | System chipset | Intel® H110-C Express |
| CPU model | I5-9300H | |
| Memory | Technology | 1 x SODIMMs DDR4 |
| Memori | DDR8G | |
| DP 3840 x 2160 4K60Hz | ||
| Display | Front end output | HDMI-2.0 3840 x 2160 4K60Hz |
| JAE port | HDMI-1.4 3840 x 2160 | |
| Model | HDMI-2.0 3840 x 2160 4K60Hz | |
| Precessor graphics card | Intel® Core Graphics | |
| Hard Disk | SSD | MINI-SATA Solid-state drive inter-face 256G |
| SATA2.5 inch Mechanical hard disk port | ||
| Stand 2.4G optional dual frequency 5G | Interface | Standard 2.4G+5G |
| Support | Stand 2.4g(Optional 2.4+5g du-al-frequency | |
| I/O interface | JAE connector | 1(JAE TX25 80-PIN) |
| DP | DP 3840 x 2160 | |
| HDMI | HDMI 3840 x2160 | |
| LAN | 1x10/100/1000Mbps(RJ45) | |
| USB | 3 x USB3.0 & 3 x USB2.0 | |
| Audio | 1 x AUDIO OUT + 1 x MIN IN | |
| Extention interface | Mini-PCLe (Built-in) | 1 x Mini-Pcle |
| 1 x Msata | ||
| Power requirements | Input voltage | DC-IN 12-19V Compute the CPU power |
| Physical properties | Size | 180x 195x 30MM (180x 195x42MM-Optional) |
| Shell Material | Iron | |
| Head dissipation | Heat Dissipation way | Aluminum double ball fans for heat dissipation |
| Temperature | -20°C~60°C | |
| Enviroment | Relatif Humidity | 10%~90% non-condensing |
| Software | Operating system | Windows®10 |
